W75Cu25 Welding Copper Tungsten Alloy Products Bar Spot Electrode

Brand Name : JX

Model Number : W75Cu25 Welding Tungsten Copper Alloy Bar Spot Electrode

Certification : ISO

Place of Origin : China

MOQ : 10kgs

Price : according to actual products

Payment Terms : T/T

Supply Ability : 300kgs month

Delivery Time : 25days

Packaging Details : standard packing

size : as request

Quality : ISO9001:2008

Surface : polishing,burnishing,black surface

delivery time : 25days

packing : standard exporting

Name : W75Cu25 Welding Tungsten Copper Alloy Bar Spot Electrode

Contact Now

W75Cu25 Welding Tungsten Copper Alloy Bar Spot Electrode

Product Description

Tungsten Copper Alloy Bar is an alloy of tungsten and copper, which is formed by isostatic pressing, high temperature sintering, tungsten framework and copper infiltration.

The comprehensive advantages of tungsten and copper, high temperature resistance, arc erosion, high strength, heavy, conductivity, good thermal conductivity, easy machining, and has the characteristics of transpiration cooling, because of the characteristics of tungsten high hardness, high melting point, anti adhesion, it is usually used to do a certain wear resistance, high temperature resistance projection welding, butt welding electrode.

Welding Tungsten Copper Alloy Bar Physical machine Property

Class	Density g/cm3	Hardness MN/m2	Resistivity μΩ.cm	Conductivity IACS
W50Cu50	11.85	1128	3.2	54
W55Cu45	12.30	1226	3.5	49
W60Cu40	12.75	1373	3.7	47
W65Cu35	13.3	1520	3.9	44
W70Cu30	13.8	1716	4.1	42
W75Cu25	14.5	1912	4.5	38
W80Cu20	15.15	2158	5.0	34
W85Cu15	15.9	2354	5.7	30
W90Cu10	16.75	2550	6.5	27

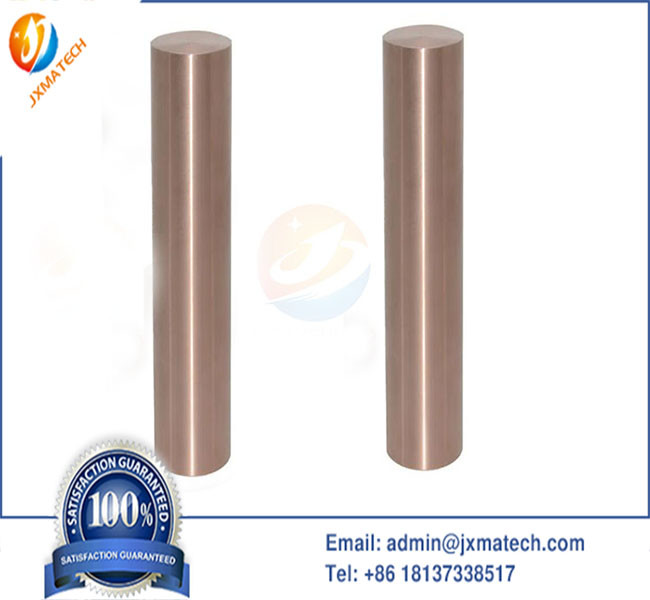

W75Cu25 Welding Tungsten Copper Alloy Bar Picture:
W75Cu25 Welding Copper Tungsten Alloy Products Bar Spot Electrode

WCu alloy rods: diameter(2-300mm)xLength(2-600mm)

Standard and safe Packing
1)paper wrapped the sheets, then plastic paper protected from moisture
2)Foam board around the the inner wooden case
3)Standard exported plywood case outside

Shipment Methods: Sea or Air transportation, train or express

Payment Methods:
1) L/C ; 2) T/T ; 3) Paypal ; 4) Money Gram ; 5) Western Union

Tungsten ranges of products:
Tungsten rods, tungsten wire, tungsten boats, W crucibles and some machined hardwares.
