Bar Tungsten Nickel Iron Alloy High Density For Military Equipment

Brand Name : JX

Model Number : Tungsten Nickel Iron Alloy Bar

Certification : ISO

Place of Origin : China

MOQ : 10kgs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 300kgs month

Delivery Time : 25days

Packaging Details : standard packing

size : as request

Quality : ISO9001:2008

Surface : polishing,burnishing,black surface

delivery time : 25days

packing : standard exporting

Name : Tungsten Nickel Iron Alloy Bar

Contact Now

Tungsten Nickel Iron Alloy Bar ,High Density Tungsten Nickel Coppe

Tungsten alloy metals mainly include W-Ni-Fe and W-Ni-Cu, which are widely used in military equipment, machinery manufacturing, aircraft parts, medical shields and sports equipment. Tungsten Heavy Alloy Cylinder Rod

Our Tungsten Nickel Iron Alloy Bar are used in collimators and shielding components to provide protection from x-ray and gamma radiation

Tungsten Nickel Iron Alloy Bar Method

Blending of tungsten powder with other metal powders and a bonding agent, cooling and sieving.

Pressing the blended powder to the required shape (allowing for shrinkage during the final processing), and shaping the green part component.

Pre-sintering the pressed components to remove the bonding agent.

Final sintering in the hydrogen fed furnace to fuse the powder particles together.

Supplied in bar, square, round and rectangle sizes are available in rough oversize, or turned or ground to exact requirements. Components can also be produced to customer drawings.

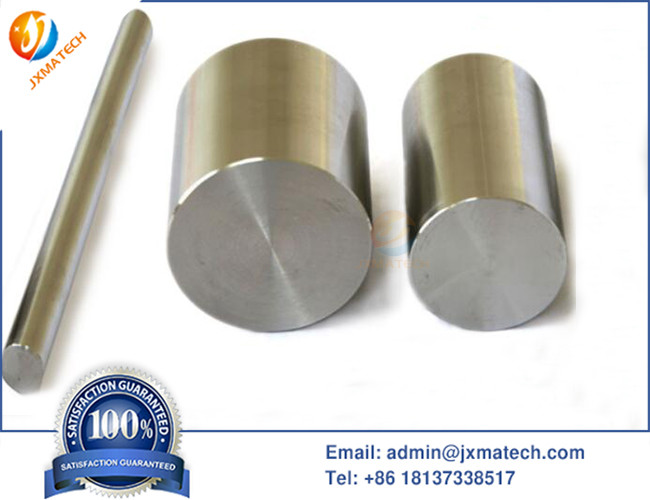

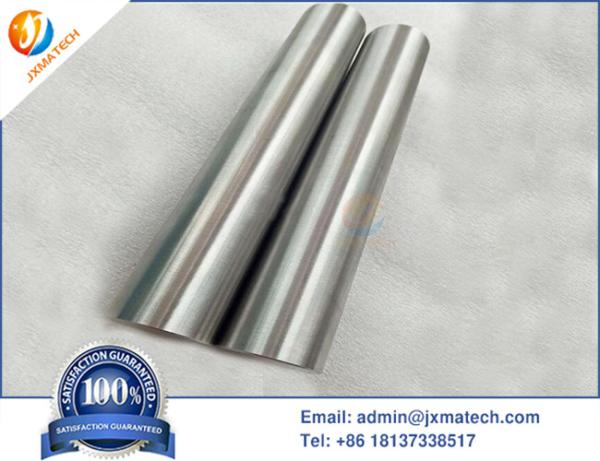

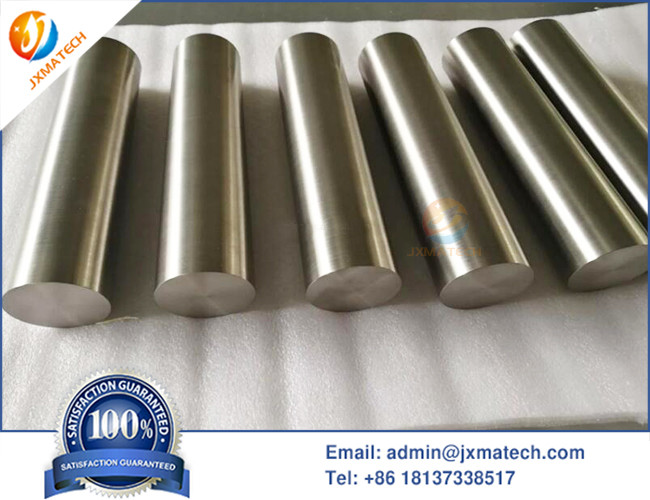

Tungsten Nickel Iron Alloy Bar Picture:

Technical datasheet for Tungsten Nickel Iron Alloy Bar

Tungsten heavy alloy	W-Ni-Fe				W-Ni-Cu
Designation	90W	92.5W	95W	97W	90Cu	92.5Cu	97Cu
Density (g/cm3)	17.0	17.6	18.0	18.5	17.0	18.0	18.5
Tensile Strength (MPa)	820	780	820	840	750	650	550
Elongation (%)	10	7.0	7.0	5.0	1.2	1.0	0.5
Hardness (HRC)	25	26	27	28	24	27	28
Young's Modulus (GPa)	310	320	340	365	270	300	320
Thermal expansion coefficients (10-6/K)	4.61	4.62	4.60	4.50	5.60	4.40	4.00
Electrical conductivity (%)	10	13	13	17	17	19	23
Thermal conductivity (W/m.K)	80	90	93	95	110	120	125
