High Density Heavy Tungsten Alloy Products Radiation Shielding Parts

Brand Name : JX

Model Number : High Density Heavy Tungsten Alloy Radiation Shielding PartsHigh Density Heavy Tungsten Alloy Radiation Shielding Parts

Certification : ISO

Place of Origin : China

MOQ : 10kgs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 300kgs month

Delivery Time : 25days

Packaging Details : standard packing

size : as request

Quality : ISO9001:2008

Surface : polishing,burnishing,black surface

delivery time : 25days

packing : standard exporting

Name : High Density Heavy Tungsten Alloy Radiation Shielding Parts

Contact Now

High Density Heavy Tungsten Alloy Radiation Shielding Parts

Heavy Tungsten Alloy Radiation Shielding Parts Description

Heavy Tungsten Alloy Radiation Shielding Parts are manufactured to only allow radiation to pass where it is actually needed. Tungsten alloy radiation shield is much safer than similar products because tungsten alloy is stable and non-toxic at high temperature. Our tungsten radiation shields ensure that ambient radiation exposure is kept to an absolute minimum when generating x-ray radiation, which is widely used in medical and industrial radiation protection.
Heavy Tungsten Alloy Radiation Shielding Parts For making rotors of dynamic intertial materials, the stabilizers of aircraft wings, shielding materials for radioactive materials, containers in hospitals and for radioactive isotope (Cobalt 60), and for material of armor piercing bullets and moulds, etc.

Heavy Tungsten Alloy Radiation Shielding Parts Advantages:

- High density
- Excellent mechanical properties such as high vibration-damping capacity and high Young's modulus.
- Excellent radiation-shielding property
- High thermal conductivity with low thermal expansion coefficient
- Higher high-temperature strength and thermal shock resistance
- High oxidation resistance and corrosion resistance

** We supply this material as per customerized sizes and properties.

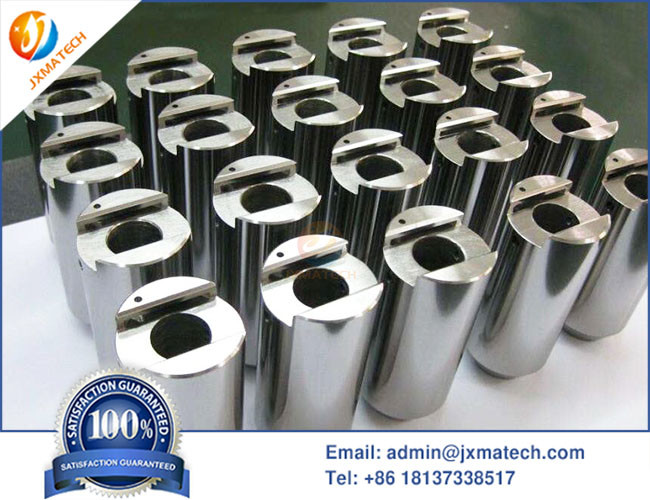

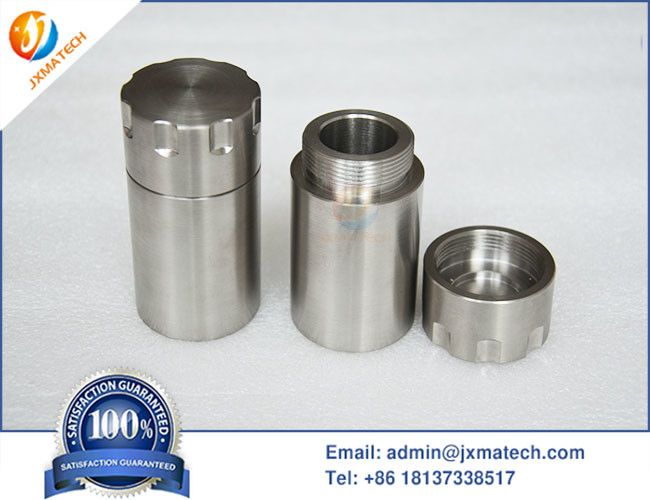

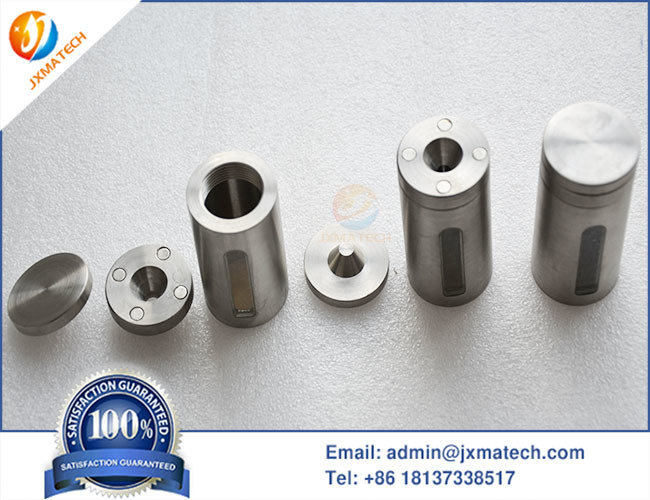

Heavy Tungsten Alloy Radiation Shielding Parts Picture:

High Density Heavy Tungsten Alloy Products Radiation Shielding Parts

High Density Heavy Tungsten Alloy Products Radiation Shielding Parts
Heavy Tungsten Alloy Radiation Shielding Parts Specifications:

Alloy Type (%)	HD17 90 W 6 Ni 4 Cu	HD17D 90 W 7 Ni 3 Fe	HD17.5 92.5 W 5.25 Ni 2.25 Fe	HD17.6 92.5 W Balance Ni, Fe, Mo	HD17.7 93 W Balance Ni, Fe, Mo	HD18 95 W 3.5 Ni 1.5 Cu	HD18D 95 W 3.5 Ni 1.5 Fe	HD18.5 97 W 2.1 Ni .9 Fe
MIL-T-21014	Class 1	Class 1	Class 1	-	-	Class 3	Class 3	Class 4
SAE-AMS-T-21014	Class 1	Class 1	Class 2	-	-	Class 3	Class 3	Class 4
AMS 7725 C	7725 C	7725 C	--	--	--	--	--	--
ASTM B777-87	Class 1	Class 1	Class 2	-	-	Class 3	Class 3	Class 4
Typical Density (g/cc)	17.1	17.1	17.5	17.6	17.7	18	18	18.5
Typical Density (lbs/in3)	0.614	0.614	0.632	0.636	0.639	0.65	0.65	0.668
Typical Hardness RC	24	25	26	30	32	27	27	28
Ultimate Tensile Strength Min (ksi)	110,000	120,000	114,000	120,000	125,000	110,000	120,000	123,000
0.2% Offset Yield Strength Min (ksi)	80,000	88,000	84,000	90,000	95,000	85,000	90,000	85,000
Minimum % Elongation (1" gage length)	6	10	7	4	4	7	7	5
Proportional Elastic Limit (PSI)	45,000	52,000	46,000	55,000	60,000	45,000	44,000	45,000
Modulus of Elasticity (x106psi)	40 x 106	45 x 106	47 x 106	52 x 106	53 x 106	45 x 106	50 x 106	53 x 106
Coefficient of Thermal Expansion x10-6/0C (20-400C)	5.4	4.61	4.62	4.5	4.5	4.43	4.6	4.5
Thermal Conductivity (CGS Units)	0.23	0.18	0.2	0.27	0.27	0.33	0.26	0.3
Electrical Conductivity (% IACS)	14	10	13	14	14	16	13	17
Magnetic	No	Slightly	Slightly	Slightly	Slightly	No	Slightly	Slightly
