Heat Resistant Tungsten Alloy Sheet Thick 2mm High Intensity

Brand Name : JX

Model Number : Tungsten Alloy Sheet/Plate

Certification : ISO

Place of Origin : China

MOQ : 10kgs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 300kgs month

Delivery Time : 25days

Packaging Details : standard packing

size : as request

Quality : ISO9001:2008

Surface : polishing,burnishing,black surface

delivery time : 25days

packing : standard exporting

Name : Tungsten Alloy Sheet/Plate

Contact Now

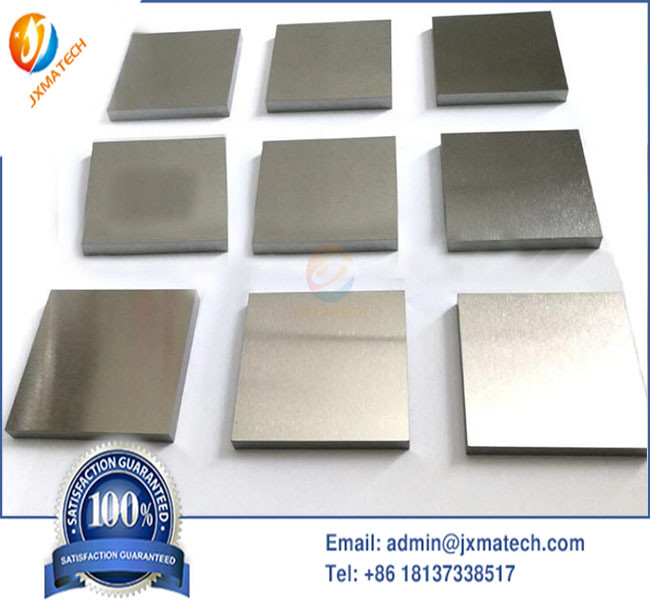

Tungsten Alloy Sheet/Plate ,Tungsten Copper Alloy Plate

Tungsten Alloy Sheet/Plate Specification:
Surface: Ground, polished
Thick :2-100mm

width:10- 500mm
Length: 10-500mm.
W/Cu: W(50-90%)/Cu(10-50%)

Tungsten Alloy Sheet/Plate Character:
1. better heat resistant;
2. better ablate-resistant;
3. high intensity
4. high density;
5. excellent thermal and electrical conductivity;
6. easy to be machined.

Tungsten Alloy Sheet/Plate Application:
1) Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors
2) Electrodes in electric spark erosion cutting machines
3) Heat sinks as passive cooling elements of electronic devices
4) Electrodes for Resistance Welding

Heat Resistant Tungsten Alloy Sheet Thick 2mm High Intensity

Brand and NO.	Chemical components%			Physical properties
Brand and NO.	Cu	Total impurities ≤	W	Density (g/cm³) ≥	Hardness HB ≥	Resistivity (µΩ·cm) ≤	Conductivity IACS%≥	Bending strength Mpa≥
CuW(50)	50±2.0	0.5	Bal.	11.85	115	3.2	54
CuW(55)	45±2.0	0.5	Bal.	12.30	125	3.5	49
CuW(60)	40±2.0	0.5	Bal.	12.75	140	3.7	47
CuW(65)	35±2.0	0.5	Bal.	13.30	155	3.9	44
CuW(70)	30±2.0	0.5	Bal.	13.80	175	4.1	42	790
CuW(75)	25±2.0	0.5	Bal.	14.50	195	4.5	38	885
CuW(80)	20±2.0	0.5	Bal.	15.15	220	5.0	34	980
CuW(85)	15±2.0	0.5	Bal.	15.90	240	5.7	30	1080
CuW(90)	10±2.0	0.5	Bal.	16.75	260	6.5	27	1160
