CNC Machine Tungsten Carbide Grooving Insert YG-6/8 Grade

Name: CNC Machine Tungsten Carbide Grooving Insert YG68 Grade
Brand: JINXING
Price: 1 USD

China CNC Machine Tungsten Carbide Grooving Insert YG-6/8 Grade wholesale

Brand Name : JINXING

Model Number : customized

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, D/A

Supply Ability : 2000 kg per month

Delivery Time : 15-20 days

Packaging Details : plywood cases

Product name : CNC Machine Tungsten Carbide Grooving Insert

Hardness : 57-63 HRC

Electric discharge processing precision : 0.02mm

Advantage : Control Quality

Application : Punching/forging/stamping/drawing/nut forming dies

Grade : YG-6/8

Standard : ASTM B578-2011

Contact Now

CNC Machine Tungsten Carbide Grooving Insert
Tungsten Carbide Grooving Insert Advantages:

1. 100% original carbide powder and excellent wear resistance and toughness;
2. High performance of CVD/PVD coating, with super hard and smooth surface;
3. ISO9001:2015 quality system control;
4. Professional chip-breaker design and provides perfect cutting performance;
5. Precise dimension, high accuracy;
6.Super long and consistent tool lifespan;
7. Customized insert design, coating, marking, packing are available.

The carbide inserts is one type of well commented carbide turning inserts which be popular among our customers all over the world.

Tungsten Carbide Grooving Insert have different size, chipbreaker, and grade are available.

Tungsten Carbide Grooving Insert Specification:

Product Name	precision injection mold components mold parts.
Material	as per your request
Color	nickel white,sliver,black,or as your request
Tolerance Standard	ISO2768-F,M, and according to the drawings or samples
Min Tolerance	0.002mm
Surface treatment	Harden,plating,anodizing,nitriding,powder coating,etc.
Standard	non-stanard,OEM service.
processing equipment	automation cnc machine,wire EDM,spark machine,stamping machine,laser engrave machine,thread rolling machine,plastic injeciton machine,Air compress machine,etc..
measure instrument	microscope,2D/3D dimensional instrument,profile projector,magnifying glass,height gauge,thickness meters,vernier caliper,Altimeter,spectrum analysers,etc
Design software	UG,PRO-E,CAD,
Used	plastic injection mold,hardware mold,blow mould,silicon mold,etc,

ISO Code	Grade	Density (g/cm3)	Hardness (HRA)	TRS Mpa	Applications recommended
K05	YG6X	14.8-14.9	91-92	>=2080	Wear resistance Machining metals, woods
K10	YG6A	14.8-14.9	91.5-92.5	>=2180
K20	YG6	14.8-14.9	90.5-91.5	>=2280
K30	YG8	14.75-14.85	90-91	>=2380
	YN8	14.7-14.8	90-91	>=2300	Corrosion resistance Wear resistance
K40	YG15	14.0-14.2	86-87.5	>=2780	Wear resistance Strong impact
	MG1	5.0-6.0	91.5-92.5	>=800	Corrosion resistance Wear resistance
	MG2	9.0-10	88.5-89.5	>=1000
	MG3	12-13	90-91	>=1200

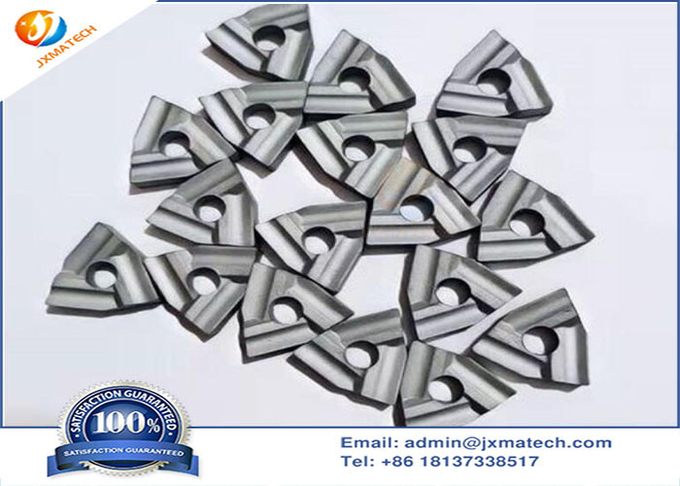

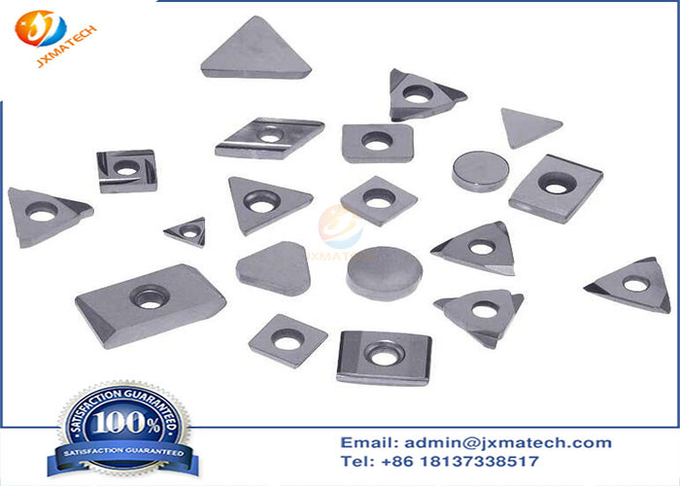

Tungsten Carbide Grooving Insert Picture:

Our company is an processing enterprise to produce hardware mould, plastic mould and precision fittings professionally.We can meet users diversified and special manufacturing requirements comprehensively with tens of years of experince, relying on sound management,excellent technology and processes. We can also provide complete tungsten steel solutions for users as we made breakthrough progress in tungsten steel parts processing field.
