Machined 90WNiCu Heavy Tungsten Alloy Molds High Performance

Name: Machined 90WNiCu Heavy Tungsten Alloy Molds High Performance
Brand: JINXING
Price: 1 USD

China Machined 90WNiCu Heavy Tungsten Alloy Molds High Performance wholesale

Brand Name : JINXING

Model Number : WNICU - Heavy Tungsten Alloy Molds

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 10 kg

Price : Negotiable

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 2000 kg per month

Delivery Time : 15-20 days

Packaging Details : plywood cases

Product Name : Heavy Tungsten Alloy Molds

Type : 90WNiCu

Density : 16.3 - 18.5 g/cc

Purity : >90%W

Tensile Strength : 730-1400 MPa

Elongation : <11%

Standards : ASTM B777-2011

Applications : die cast

Contact Now

Machined 90WNiCu High Performance Heavy Tungsten Alloy Molds

Heavy Tungsten Alloy Molds are made of tungsten matrix (tungsten content is generally 80%~98%) and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements. The density of high specific gravity tungsten alloy is up to 15.20~18.70g/cm3, also known as high specific gravity tungsten alloy or high density alloy material. Because tungsten alloys weigh more than twice as much as steel.

What is Heavy Tungsten Alloy Molds?

Tungsten alloy has a series of excellent properties, high specific gravity: general specific gravity 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, strong absorption capacity: 30-40% higher than the general specific gravity of lead, high thermal conductivity: 5 times of mold steel; Low thermal expansion coefficient: only 1/2-1/3 of steel, good electrical conductivity, good weldability and machinability.
A common method of making heavy tungsten alloys is to mix tungsten, iron, nickel, or copper powder in the desired amount and then mix it with a cold press and liquid sinter to near full density. During the liquid phase treatment, the base tungsten alloy melts and causes some tungsten to enter the solution, forming a microstructure through which large tungsten particles (20-60μm) are dispersed in the base alloy.

SPECIFICATIONS & CHEMICAL COMPOSITIONS (NOMINALS)

Chemical Composition	90%W			93%W			95%W		97%W
State	Sinter	Vacuum	Forge	Sinter	Vacuum	Forge	Sinter	Vacuum	Sinter	Vacuum
Density (g/cc)	16.85-17.25			17.15-17.85			17.75-18.35		18.25- 18.85
Hardness (HRC)	32 Max	30 Max	40 Min	33 Max	31 Max	40 Min	34 Max	32 Max	35 Max	33 Max
Tensile Strength (Max)	770 Min	900 Min	1400 Max	770 Min	910 Min	1440 Max	735 Min	920 Min	700 Min	850 Min
Yield Strength (Mpa)	620 Min	620 Min	1280 Max	650 Min	650 Min	1340 Max	650 Min	650 Min	-	-
Elongation (%)	5 Min	15 Min	5 Min	5 Min	12 Min	3 Min	3 Min	12 Min	2 Min	6 Min

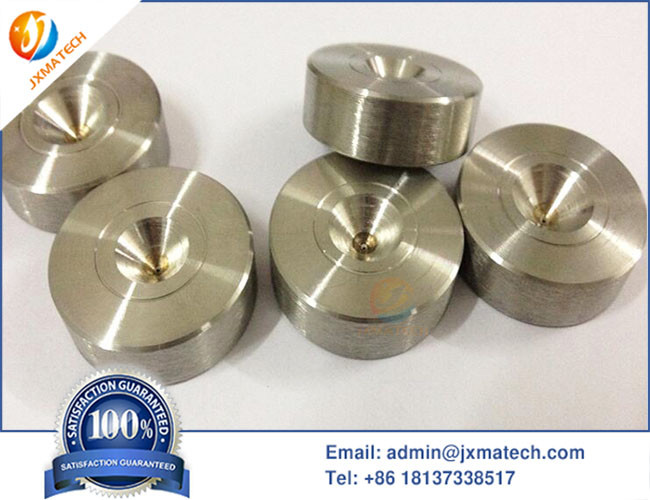

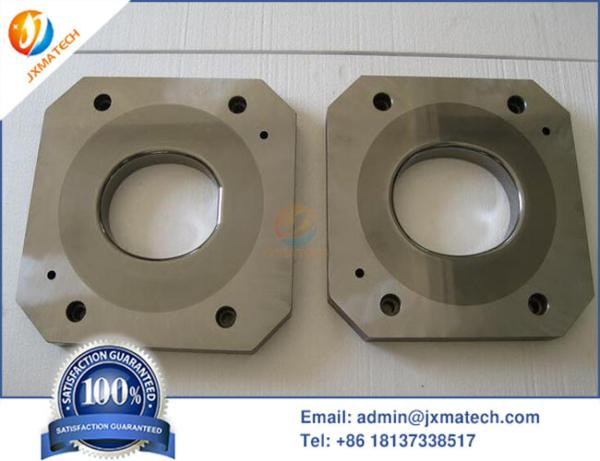

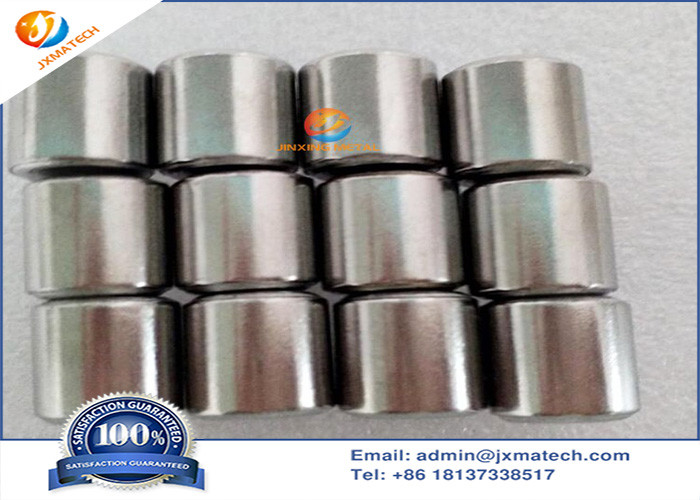

Heavy Tungsten Alloy Molds Picture:

Application of Heavy Tungsten Alloy Molds

Mold is a low-chip, chip-free precision casting process, which can directly produce complex shaped parts. Single process, high yield, no porosity, save raw materials, especially in iron metal die casting, mold working conditions are very bad, must be able to withstand high temperature, high pressure and metal flow erosion, and can resist corrosion, oxidation and thermal impact. High specific gravity tungsten alloy has good thermal conductivity and corrosion resistance, which is a good die casting material. Compared with the copper mold, its service life is increased dozens of times.
