95WNiFe Heavy Tungsten Alloy Pins Wearing Resistance Hardnessx

JINXING MATECH CO LTD
Contact Now

95WNiFe Heavy Tungsten Alloy Pins Wearing Resistance Hardnessx

Brand Name : JINXING

Model Number : WNiFe - Heavy Tungsten Alloy Pins

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 10 kg

Price : Negotiable

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 2000 kg per month

Delivery Time : 15-20 days

Packaging Details : plywood cases

Product Name : Heavy Tungsten Alloy Pins

Grade : WNiFe

Density : 18.5 g/cc

Purity : 95%W

Tensile Strength : 750-1400 MPa

Elongation : <9%

Standards : ASTM B777-2011

Applications : machined parts

Contact Now

95WNiFe Wearing Resistance Hardness Heavy Tungsten Alloy Pins

Heavy tungsten alloy pins are made of tungsten base (tungsten content is generally 80% - 98%) and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements. The density of high specific gravity tungsten alloy can reach 15.20~18.70g/cm3, also known as high specific gravity tungsten alloy or high density alloy material. Because tungsten alloy weighs more than twice as much as steel.

Introduction and Feature of Heavy Tungsten Alloy Pins

  1. Tungsten alloy has a series of excellent properties, high specific gravity: General specific gravity 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, strong light absorption: higher than general lead specific gravity 30-40%, high thermal conductivity: mold is 5 times that of steel; Low thermal expansion coefficient: the capacity is only 1/2/3 of that of steel, with good conductivity, welding electricity and cutting resistance.

  2. The common method of preparing heavy tungsten alloys is to mix the required tungsten, iron, nickel or copper powder, and then cold press the liquid phase to close to the full density. In the process of liquid phase treatment, the matrix tungsten alloy melts, and some tungsten enters the solution to form the microstructure of large tungsten particles (20-60m) dispersed in the matrix alloy.

SPECIFICATIONS of Heavy Tungsten Alloy Pins

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)
16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)
32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max
770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)
620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)
5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

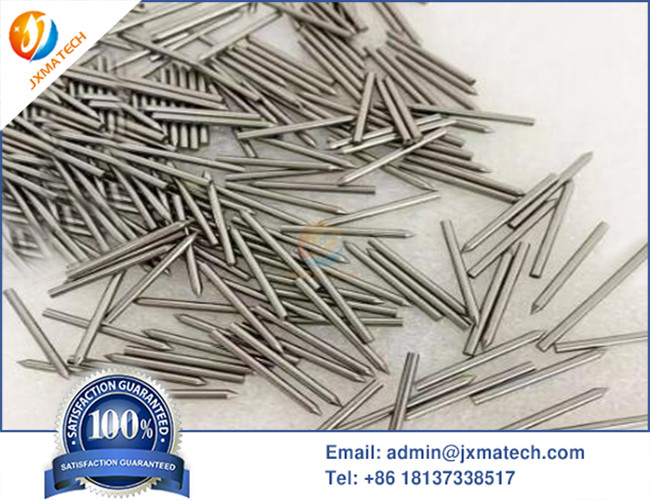

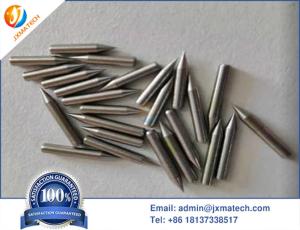

Heavy Tungsten Alloy Pins Picture:
95WNiFe Heavy Tungsten Alloy Pins Wearing Resistance Hardnessx95WNiFe Heavy Tungsten Alloy Pins Wearing Resistance Hardnessx

Application of Heavy Tungsten Alloy Pins

  • Heavy duty tungsten alloy pins are made of high gravity tungsten alloy. The wear resistance, hardness, strength and heat resistance of the alloy are further improved, and the consistency of the product is better guaranteed. Due to these characteristics, tungsten-iridium holes have become an important part of the high-tech crystal glass industry.
