W75cu25 Tungsten Copper Alloy Tube Pipe Burnishing Surface

Brand Name : JX

Model Number : Tungsten Copper Alloy Tube/Pipe High Quality W75cu25 Tube

Certification : ISO

Place of Origin : China

MOQ : 10kgs

Price : according to actual products

Payment Terms : T/T

Supply Ability : 300kgs month

Delivery Time : 25days

Packaging Details : standard packing

size : as request

Quality : ISO9001:2008

Surface : polishing,burnishing,black surface

delivery time : 25days

packing : standard exporting

Name : Tungsten Copper Alloy Tube/Pipe High Quality W75cu25 Tube

Contact Now

​Tungsten Copper Alloy Tube/Pipe High Quality W75cu25 Tube

Tungsten Copper Alloy Tube/Pipe specification:
1) WCu (W70Cu, W75Cu, W80Cu, W85Cu, W90Cu, etc)
2) Density:16-18.8g/cm3
3) Size:As your need
Plate: (0.04-50)* W X L
rod-Dia.1.5 - 200 X 300mm Long
4) Flatness tolerance:<4um
5) Roughness:Ra1.6-Ra0.8
6) Surface: polished, ground.

Tungsten Copper Alloy Tube/Pipe Description

1. Grade: CuW-(75)
2. Composition: W(75%), Cu(25%)
3. Applications:
Polished Tungsten Copper Alloy is Mainly used for EDM machining of carbide molds, high-speed steel and switches and contacts in high and low voltage electrical devices.

Tungsten Copper Alloy Tube/Pipe Chemical Composition:

Code No. Chemical Composition % Mechanical properties
CU Impurity W Density
(g/cm3 )		 Hardness
HB		 RES
(cm)		 Conductivity
IACS/ %		 TRS/
Mpa
CuW50 50+/-2.0 0.5 Balance 11.85 115 3.2 54
CuW55 45+/-2.0 0.5 Balance 12.3 125 3.5 49
CuW60 40+/-2.0 0.5 Balance 12.75 140 3.7 47
CuW65 35+/-2.0 0.5 Balance 13.3 155 3.9 44
CuW70 30+/-2.0 0.5 Balance 13.8 175 4.1 42 790
CuW75 25+/-2.0 0.5 Balance 14.5 195 4.5 38 885
CuW80 20+/-2.0 0.5 Balance 15.15 220 5 34 980
CuW85 15+/-2.0 0.5 Balance 15.9 240 5.7 30 1080
CuW90 10+/-2.0 0.5 Balance 16.75 260 6.5 27 1160

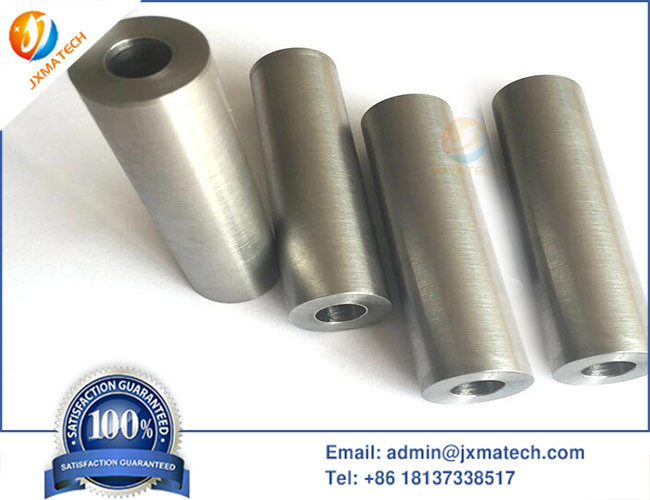

Tungsten Copper Alloy Tube/Pipe Picture:
W75cu25 Tungsten Copper Alloy Tube Pipe Burnishing SurfaceW75cu25 Tungsten Copper Alloy Tube Pipe Burnishing Surface
