1J50 HiperCo50A Round Bar Permalloy Soft Magnetic Precision Alloy

Name: 1J50 HiperCo50A Round Bar Permalloy Soft Magnetic Precision Alloy
Brand: JINXING
Price: 1 USD

China 1J50 HiperCo50A Round Bar Permalloy Soft Magnetic Precision Alloy wholesale

Brand Name : JINXING

Model Number : 1J50 - Hiper Co50A Round Bar

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 30 kg

Price : Negotiable

Payment Terms : T/T, D/P, L/C, D/A, Western Union, MoneyGram

Supply Ability : 2000 kg per month

Delivery Time : 15-20 days

Packaging Details : plywood cases

Material : 1J50 Hiper Co50A Round Bar

Size : dia 5 - 100mm x L

Density : 8.22 g/cc

Tensile Strength : 493 MPa

Hardness : 95 HRB

Elongation : 31%

Electrical Resistivity : 425 microhm-mm

Applications : Industrial

Contact Now

1J50 HiperCo50A Round Bar Permalloy Soft Magnetic Precision Alloy

HiperCo50A Round Bar is a soft magnetic alloy, which is mainly used for electric core materials in electrical equipment requiring high permeability and very high magnetic flux density. Compared with other magnetic alloys with low permeability in the same magnetic field range, the magnetic properties of this alloy allow weight reduction, copper turns reduction, and insulation of the final product

Chemical Composition of Hiper Co50A Round Bar

Element	Min	Max
Carbon	--	0.01
Manganese	--	0.05
Silicon	--	0.05
Cobalt	--	48.75
Vanadium	--	1.90
Iron	Bal

Relative Grade of HiperCo50A Round Bar

Grade	U.K.	Germany	U.S.A.	Russia	Standard
1J22	Permendur	Vacoflux 50	Supermendur HiperCo50	50КФ	GB/T15002-1994

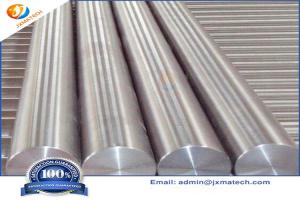

HiperCo50A Round Bar Picture

1J50 HiperCo50A Round Bar Permalloy Soft Magnetic Precision Alloy

Application of Hiper Co50A Round Bar

Soft magnetic alloy has high magnetic rate and low coercivity in weak magnetic field. It is a kind of ferromagnetic precision alloy that can be used to manufacture magnetic conductor cores and magnetic shielding of radio communication equipment. It has been widely used in power electronics, aerospace, instrumentation and other industries.

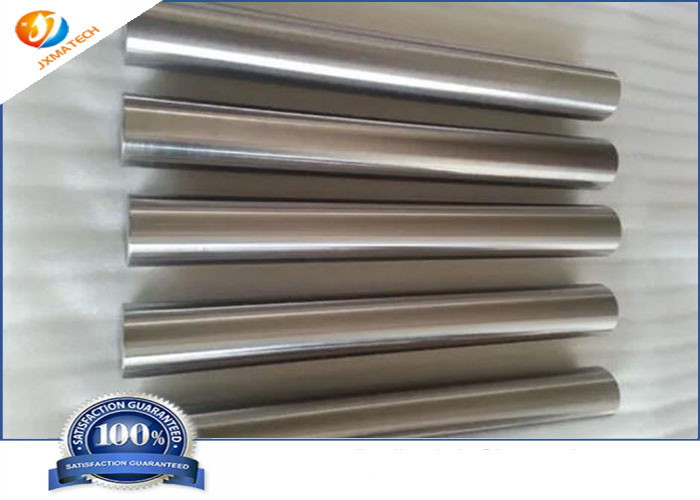

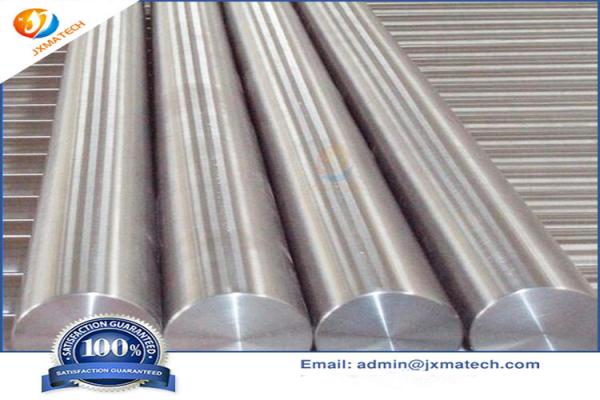

1J50 HiperCo50A Round Bar Permalloy Soft Magnetic Precision Alloy Images
