High Permeability Permendur2V 1J22 Soft Magnetic Alloy Pipe At Industrial Usage

Name: High Permeability Permendur2V 1J22 Soft Magnetic Alloy Pipe At Industrial Usage
Brand: JINXING
Price: 1 USD

China High Permeability Permendur2V 1J22 Soft Magnetic Alloy Pipe At Industrial Usage wholesale

Brand Name : JINXING

Model Number : 1J22 - Soft Magnetic Alloy Pipe

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 30 kg

Price : Negotiable

Payment Terms : T/T, D/P, L/C, D/A, Western Union, MoneyGram

Supply Ability : 2000 kg per month

Delivery Time : 15-20 days

Packaging Details : plywood cases

Material : 1J22 Soft Magnetic Alloy Pipe

Size : Wall thickness 1.5mm - 30mm

Density : 8.22 g/cc

Tensile Strength : 493 MPa

Hardness : 94 HRB

Elongation : 31%

Electrical Resistivity : 421 microhm-mm

Application : Industrial Corrosive Pipeline

Contact Now

High Permeability Permendur2V 1J22 Soft Magnetic Alloy Pipe At Industrial Usage

1J22 Soft Magnetic Alloy Pipe is a soft magnetic alloy, which is mainly used for electric core materials in electrical equipment requiring high permeability and very high magnetic flux density. Compared with other magnetic alloys with low permeability in the same magnetic field range, the magnetic properties of this alloy allow weight reduction, copper turns reduction, and insulation of the final product.

Chemical Composition of 1J22 Soft Magnetic Alloy Pipe

Element	Min	Max
Carbon	--	0.01
Manganese	--	0.05
Silicon	--	0.05
Cobalt	--	48.75
Vanadium	--	1.90
Iron	Bal

Relative Grade of 1J22 Soft Magnetic Alloy Pipe

Grade	U.K.	Germany	U.S.A.	Russia	Standard
1J22	Permendur	Vacoflux 50	Supermendur HiperCo50	50КФ	GB/T15002-1994

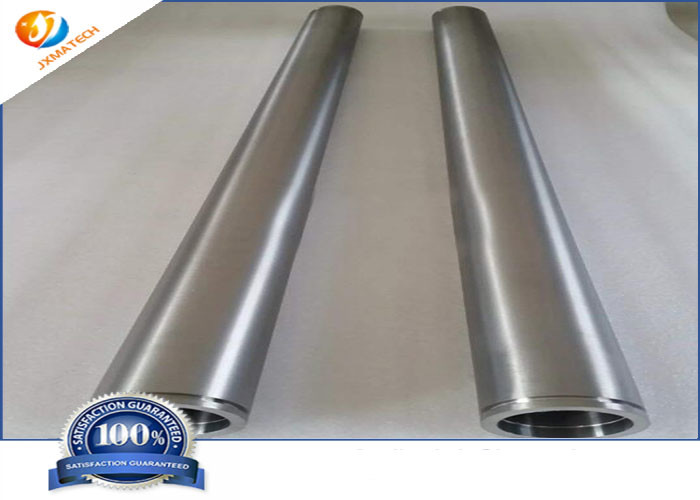

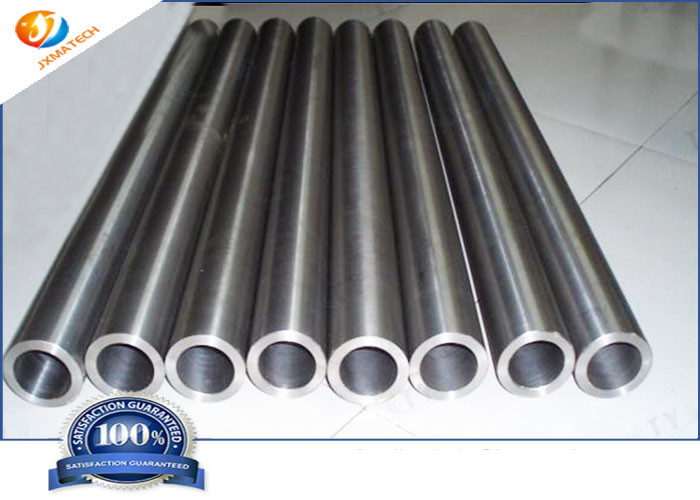

1J22 Soft Magnetic Alloy Pipe Picture:

Application of 1J22 Soft Magnetic Alloy Pipe

Soft Magnetic Alloy Tube has good electroplating performance, and the surface can be plated with gold, silver, nickel, chromium and other metals. Soft magnetic alloy has high magnetic rate and low coercivity in weak magnetic field. It is a kind of ferromagnetic precision alloy that can be used to manufacture magnetic conductor cores and magnetic shielding of radio communication equipment. It has been widely used in power electronics, aerospace, instrumentation and other industries.
