Soft Magnetic Precision Alloy Hiper Co50 1J22 Wire For Magnetic Conductor Core

Brand Name : JX

Model Number : Soft Magnetic Precision Alloy Hiper Co50 1J22 Wire For Magnetic Conductor Core

Certification : ISO

Place of Origin : china

MOQ : 100kgs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 3000T

Delivery Time : 35days

Packaging Details : Standard wooden case

Product Type : Soft Magnetic Precision Alloy Hiper Co50 1J22 Wire For Magnetic Conductor Core

Material : Feni Alloy

Carbon Content : low

Transport Package : wooden case

Shape : round bar

Condition : soft

Surface : Bright

Origin : China

Contact Now

Soft Magnetic Precision Alloy Hiper Co50 1J22 Wire For Magnetic Conductor Core

1J22 wire is a high saturation magnetic induction ferroco-vanadium soft magnetic alloy. Among existing soft magnetic materials, the alloy has the highest saturation magnetic induction (2.4T), high Curie point (980℃) and the largest saturation magnetostrictive coefficient (60-100×10-6). Because of the high saturation magnetic induction, the size of the motor with the same power can be greatly reduced. When it is used as an electromagnet, it can produce a large attraction at the same cross-sectional area.

Chemical Composition of 1J22 Wire

Element	Min	Max
Carbon	--	0.01
Manganese	--	0.05
Silicon	--	0.05
Cobalt	--	48.75
Vanadium	--	1.90
Iron	Bal

Relative Grade of HiperCo50 1J22 Wire

Grade

U.K.

Germany

U.S.A.

Russia

Standard

1J22

Permendur

Vacoflux 50

Supermendur

HiperCo50

50КФ

GB/T15002-1994

Application of 1J22 Wire

Hiperco 50A is an iron-cobalt-vanadium soft magnetic alloy with high magnetic saturation (24 kilo-gaause), high maximum DC permeability, low DC coercivity, and low AC core loss. This alloy exhibits superior magnetic properties to other commercial ferrocobalt soft magnetic alloys. Hippeko? The 50A is mainly used in magnetic cores in electrical equipment that require high permeability at high flux density, or in magnetic tape cores that require minimum AC loss and high permeability at high inductance.

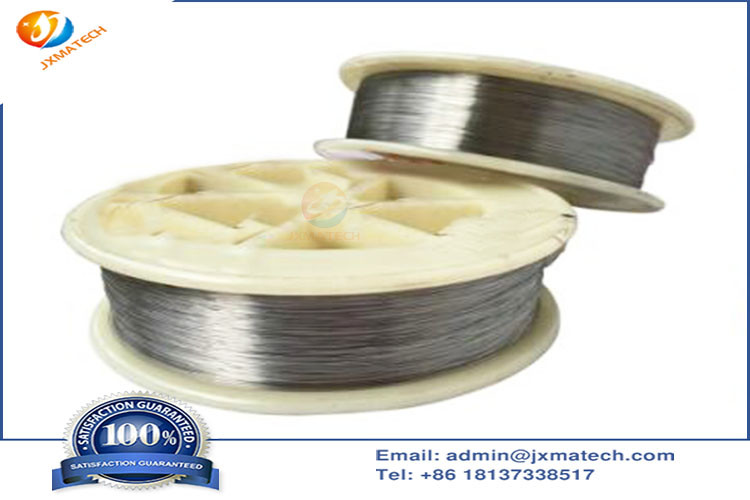

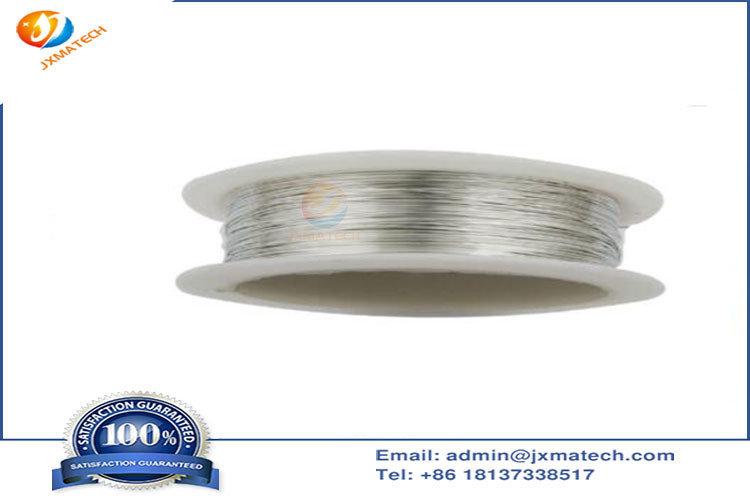

Nickel-Iron Soft Magnetic Alloy Wire Picture:

Soft Magnetic Precision Alloy Hiper Co50 1J22 Wire For Magnetic Conductor Core

.Due to the large magnetostrictive coefficient, and is suitable for used as a magnetostrictive transducer, output energy is high, the efficiency is high.The resistivity of low alloy (0.27 mu Ω m.), is not suitable for use under high frequency.Price is more expensive, easily oxidized, processing performance is poor, adding suitable nickel or other elements, can improve the processing performance.

Soft Magnetic Precision Alloy Hiper Co50 1J22 Wire For Magnetic Conductor Core Images
